NT538-ETH

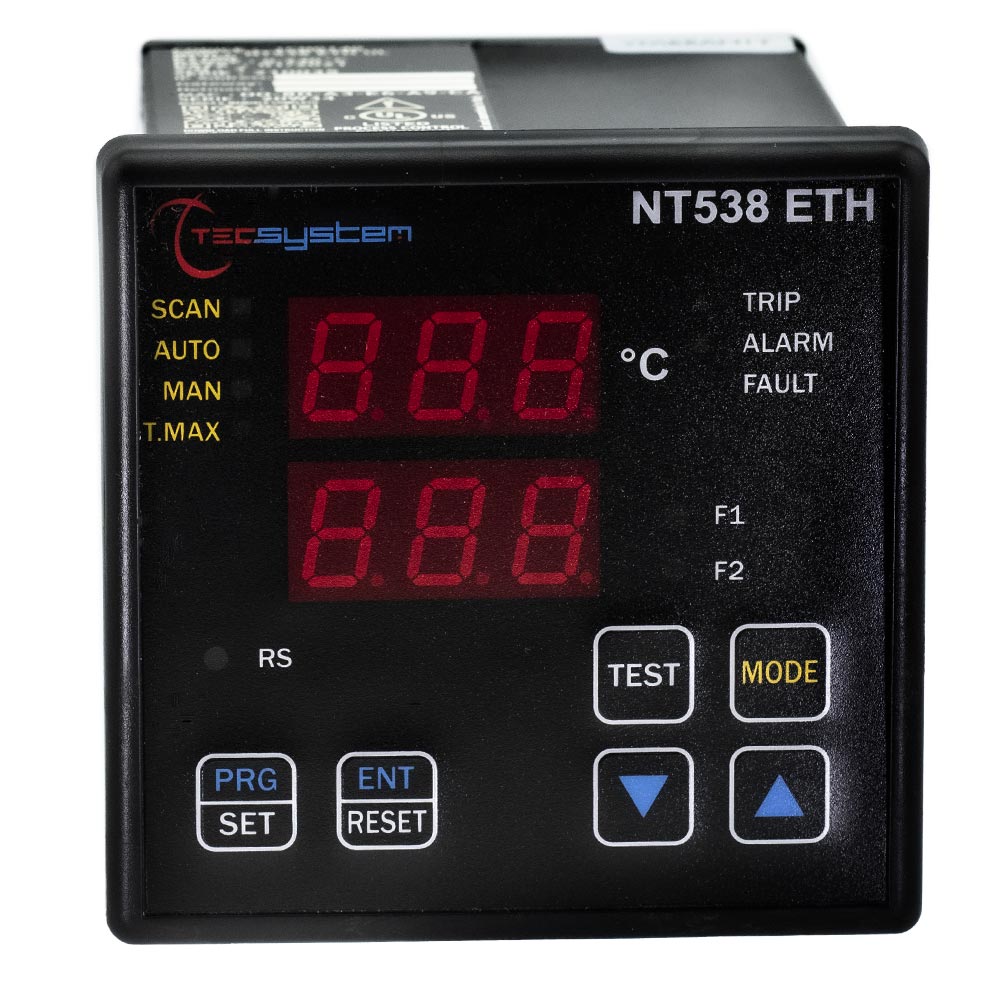

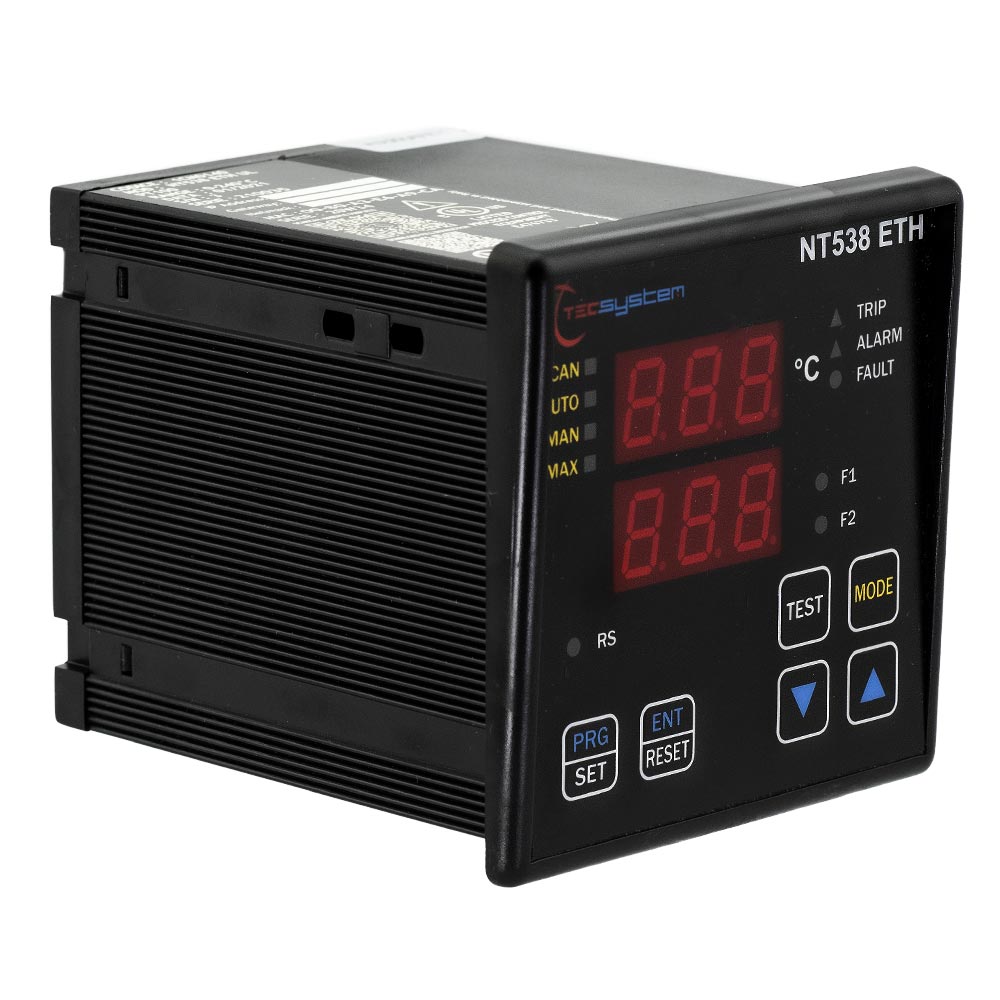

The NT538 is a microprocessor based temperature controller for motor drives with winding and bearing sensors. The NT538 has 8 input channels, allowing for monitoring temperature at up to 8 different locations.  Featuring a dual display with 3 digits for displaying temperatures, messages and channels, along with 3 LEDs to display the state of the alarms of the selected channels and 2 LEDs to display the state of two separate fans.  The ETH version includes an ethernet output in addition to the standard relay outputs

Features:

• Temperature monitoring from 0°C to 240°C (32° – 464°F)
• 24-240VAC-DC input power
• VDC with reversible polarities
• Rated for use in ambient temperatures from -20° to +60°C (-4° to 140°F)
• 8 inputs RTD Pt100 3 wires
• All potential free output relays rated for up to 10A @ 250VAC
• 2 alarm relays (Alarm & Trip)
• 2 alarm relays for fan control
• 1 alarm relay for sensor fault
• Ethernet output 10Base T/ 100Base-TX Modbus TCP slave
