N5PEX304
N5 Push Button Station; 3 operator, Start-Stop-On Light (120v); Momentary green flush on button (NO); Momentary extended red off button (NC); Green Pilot light, 4X/IP66, polycarbonate
In stock
-
Additional Information

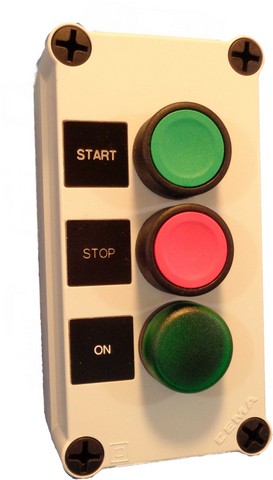

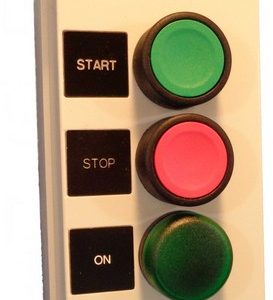

▼Springer Controls IEC 22mm push button station comes with (1) green momentary button, with an NO contact. The red extended push button has an NC contact. The green pilot light turns on when on is pressed. The light requires 120V power to operate. Additional NO or NC contacts can be purchased for each operator. Each operator can accommodate up to 3 total contacts. Features include a rugged polycarbonate enclosure rated NEMA 4X / IP66. The enclosure measures 5.51″ H X 2.83″ W X 2.1″ Deep. Engraved legend plates saying “START” and “STOP” and “ON” are included
-
Specifications
▼Weight 0.8 lbs PB STATIONS-# OF OPERATORS 3
PB STATIONS-ESTOP None
PB STATIONS-ENCLOSURE MAT'L Polycarbonate
PB STATIONS-OPERATOR SIZE 22mm IEC
