N5PEX205

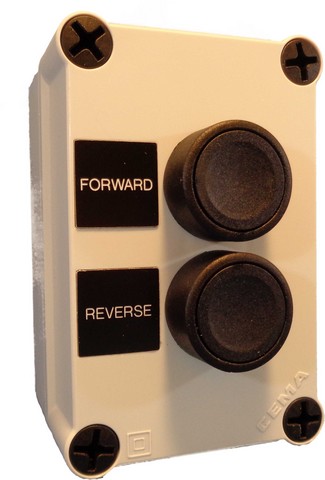

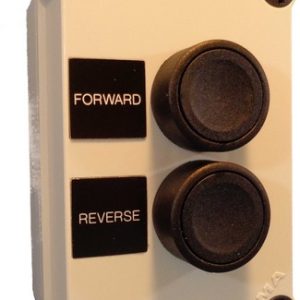

N5 Push Button Station; Forward-Reverse, 2 Black Momentary buttons (1) NO contact ea., NEMA 4X, IP66 with engraved legend plates
In stock
-
Additional Information
▼Springer Controls IEC 22mm push button station comes with (2) Black momentary buttons, each with an NO contact Additional NO or NC contacts can be purchased for each operator. Each operator can accommodate up to 3 total contacts. Features include a rugged polycarbonate enclosure rated NEMA 4X / IP66. The enclosure measures 4.33″ H X 2.83″ W X 2.1″ Deep. Engraved legend plates saying “FWD” and “REV” are included
-
Specifications
▼Weight 0.58 lbs PB STATIONS-# OF OPERATORS 2
PB STATIONS-ESTOP None
PB STATIONS-ENCLOSURE MAT'L Polycarbonate
PB STATIONS-OPERATOR SIZE 22mm IEC
