N5PEX1143

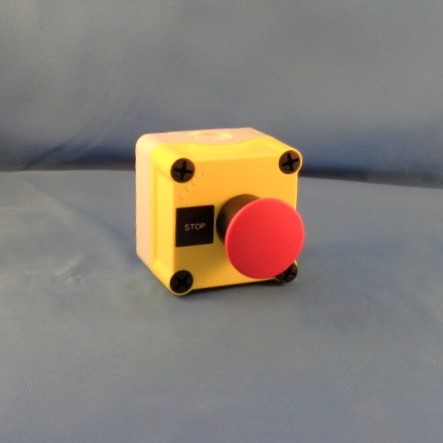

E-Stop Station; Open Style, Yellow Poly Encl., Momentary, Mushroom Head E-Stop (Red), 1NC Contact & 1NO contact, IP66
In stock
-
Additional Information
▼Open style Emergency Stop Station includes a compact polycarbonate enclosure. The 40mm sized mushroom head operators come in your choice of Push-Pull, Momentary, Twist-Release or Key-Release functions. The contact configuration is either 1 normally closed contact or 1 normally closed & 1 normally open contact. Features include a yellow, compact polycarbonate enclosure (2.8″ x 2.8″ x 2.1″), no metal components to rust, knock-outs on top & bottom, base mounted contacts (no wiring to cover), “Stop” legend, outdoor rated, Nema 12, IP66, UL approved.
-
Specifications
▼Weight 1 lbs PB STATIONS-# OF OPERATORS 1
PB STATIONS-ESTOP Momentary
PB STATIONS-ENCLOSURE MAT'L Polycarbonate
PB STATIONS-OPERATOR SIZE 22mm IEC
