N5PEX1115

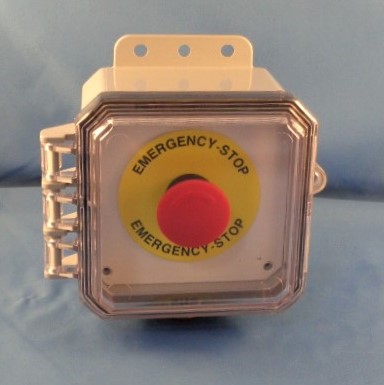

E-Stop Station; 4x4x3 Poly Encl., Clear Cover, Twist-Release Mushroom Head E-Stop (Red), 1NC Contact & 1NO Contact, Nema 4X, IP68.
In stock
-
Additional Information
▼Assembled 22mm style Emergency Stop Station includes a clear-cover that protects against accidental activation, damage or vandalism. The 40mm sized mushroom head operators come in your choice of Push-Pull, Momentary or Twist-Release functions. The contact configuration is either 1 normally closed contact or 1 normally closed & 1 normally open contact. Features include UL approved polycarbonate enclosure (external 6″ x 6.5″ x 4″), clear cover with integrated locking latch, no metal components to rust, mounting provisions on top and bottom, clearly labeled “Emergency Stop” legend, outdoor rated Nema 4X, IP68.
-
Specifications
▼Weight 2 lbs PB STATIONS-# OF OPERATORS 1
PB STATIONS-ESTOP Twist Release
PB STATIONS-ENCLOSURE MAT'L Polycarbonate-Clear Cover – Enclosed
PB STATIONS-OPERATOR SIZE 22mm IEC
