ML1-025-AR3E

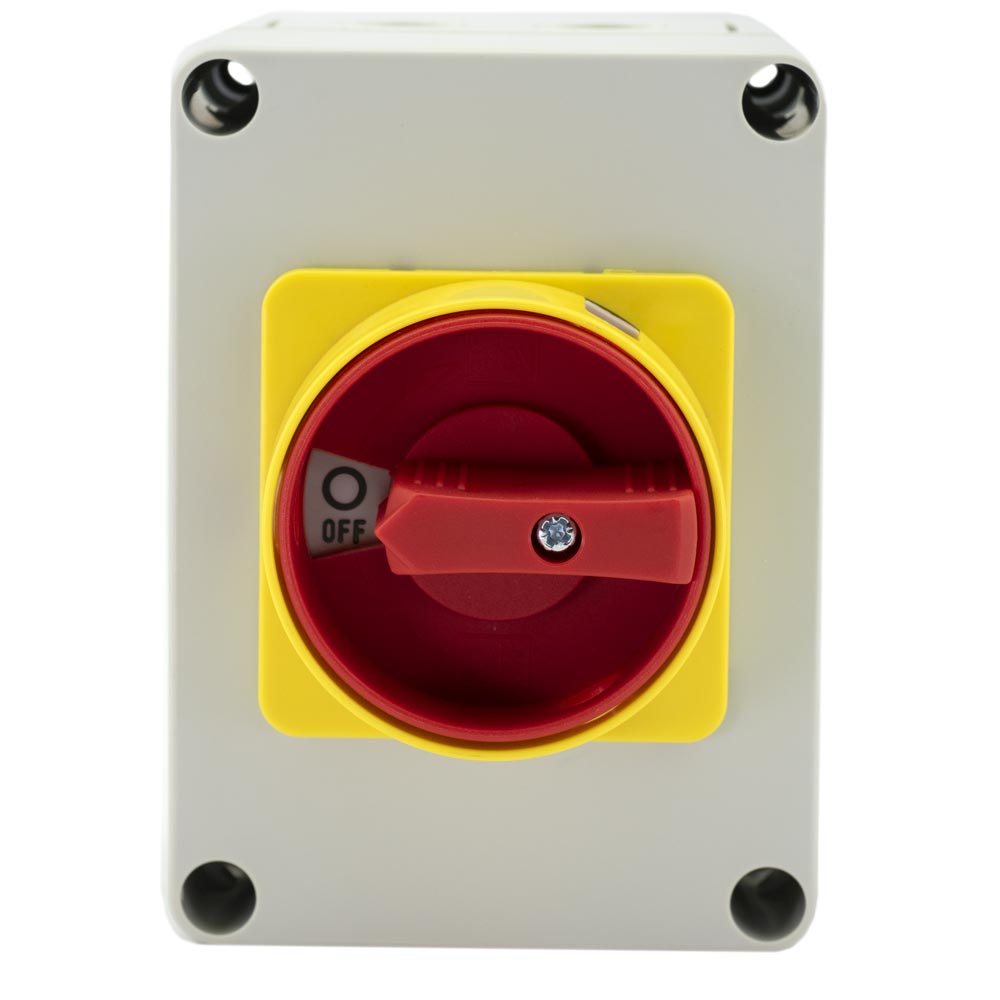

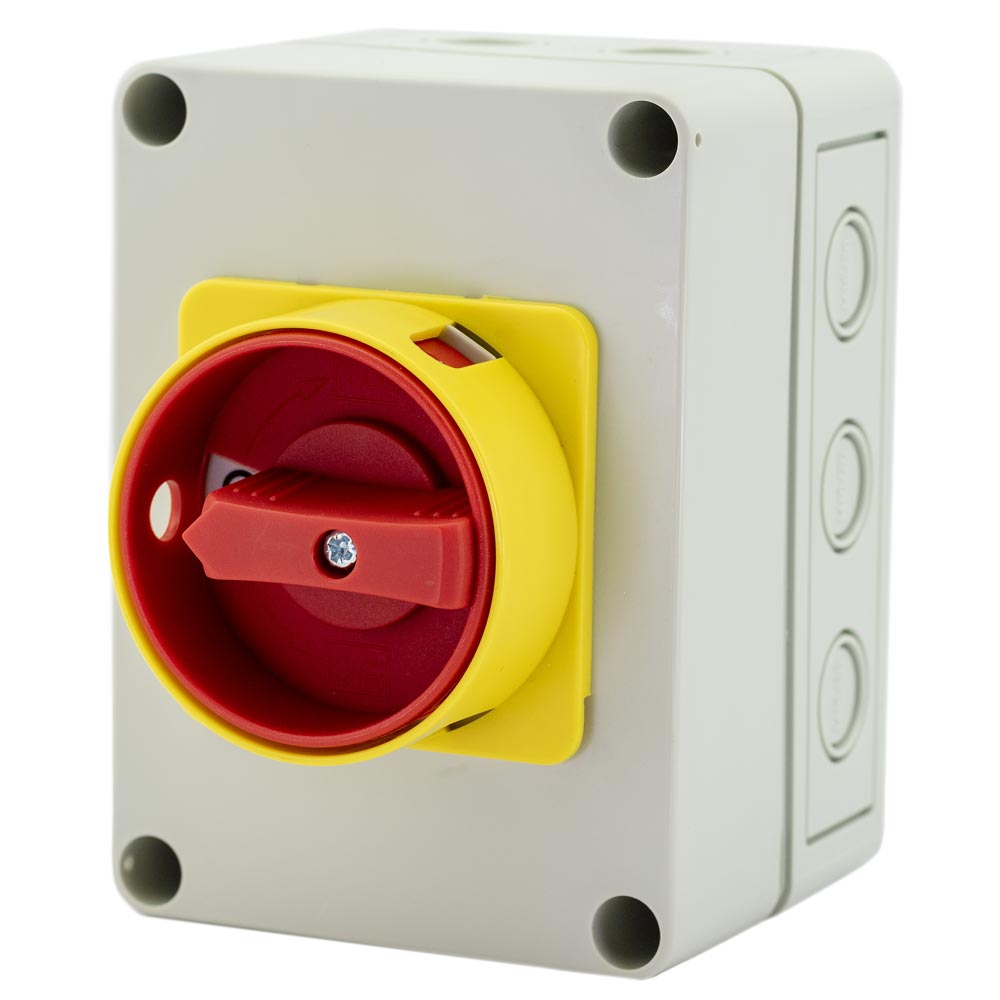

Disconnect Switch; 25A, Enclosed (IP65) , Red Disc Handle, 3 padlock Holes
In stock
-
Additional Information
▼Springer Controls enclosed non-fusible disconnect switches are compact, and modular to be able to satisfy a wide range of applications. The switches are certified according to UL508 and IEC60947 for operation up to 600VAC. The enclosures carry an IP65 rating, water & rain tight for outdoor installation. 3 poles are standard, with auxiliary contacts, additional poles, neutral or ground terminals available. Terminal finger guard covers are included for incoming terminals, outgoing terminal covers are optional.
-
Specifications
▼Weight 1.25 lbs Disc & Cams - Rated Current 25Amp
Disc & Cams - Mounting Base Mount – Door Interlock
Disc & Cams - Handle Color Red/Yellow
DISC & CAM HANDLE TYPE Disc (lockable)
Disc & Cams - Enclosed/Open Enclosed (IP65)
