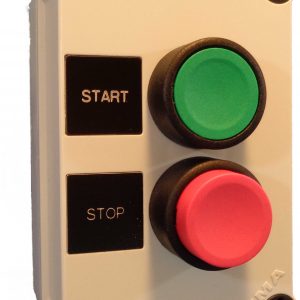

N5 Pushbutton Station
Springer Controls offers a variety of options in regards to push-button control stations. Custom assembled push button stations are available from 1 operator to 8 operator controls. The N5 series uses standard 22mm IEC pilot devices in various polycarbonate, mild steel or stainless-steel enclosures. Large selection of operators including push buttons, selector switches, pilot lights, mushroom head push buttons, keyed selector switches, joysticks. Large variety of colors available.N5 Pushbutton Station
• Polycarbonate, metal or stainless steel enclosures available from 1 hole to 8 hole.
• Standard 1 button – 3 button assembled units in stock and available for immediate shipment.
See examples of our standard stocked units below: -

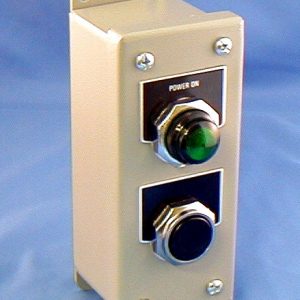

N7 Pushbutton Station
The N7 push button stations are stocked in parts for immediate assembly to suit your requirements. The N7 uses 30mm pushbuttons in a NEMA 4X polycarbonate enclosure, or a NEMA 4 mild steel enclosure. We offer the N7 in 1, 2, 3 and 4 button sizes. Contact us for custom options.N7 Pushbutton Station -

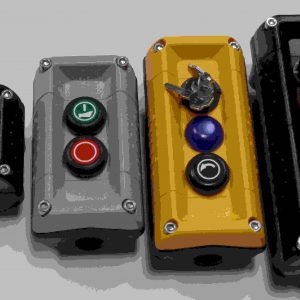

Victor Pushbutton Station
Victor Pushbutton StationThe VICTOR is the first wall mount push-button control station to enter the TER line. It shares components and accessories with the MIKE series pendant controller. Available from a single push-button to an eight position setup, this controller brings versatility and quality to any environment requiring motion control. By mounting the cable inlet and switches to the base, and mounting the actuators to the cover, we’ve made wiring up the VICTOR easy and clean. The VICTOR push-button controller offers both single and two speed actuators, and up to three contacts per actuating position. In addition, VICTOR controllers can be outfitted with a variety of accessory items such as potentiometers, illuminated selectors and push-buttons, as well as key operated actuators.
- 1-8 Operating Positions
- 3 Housing Colors Available, Yellow, Gray, Black
- IP66, IP67, IP69K rated (NEMA 4X) for indoor use
- Huge variety of actuator labels available – can be directly on the button or off to the side
- M20 cable clamp can be installed on top, bottom or back of enclosure
- Magnetic mounting option available
N5 Pushbutton Station
Springer Controls offers a variety of options in regards to push-button control stations. Custom assembled push button stations are available from 1 operator to 8 operator controls. The N5 series uses standard 22mm IEC pilot devices in various...
N7 Pushbutton Station
The N7 push button stations are stocked in parts for immediate assembly to suit your requirements. The N7 uses 30mm pushbuttons in a NEMA 4X polycarbonate enclosure, or a NEMA 4 mild steel enclosure. We offer the N7 in 1, 2, 3 and 4 button sizes. ...Victor Pushbutton Station
The VICTOR is the first wall mount push-button control station to enter the TER line. It shares components and accessories with the MIKE series pendant controller. Available from a single push-button to an eight position setup, this controller...
Springer Controls offers 3 different types of push button control stations. The N5 series uses standard IEC 22.5mm pilot devices. The N7 series uses standard NEMA 30mm pilot devices. The Victor series is from TER and uses the same contacts and pilot devices as the Mike series pendant. These are proprietary from Tecno Elettrica Ravasi. All 3 offer a wide range of options, and can be customized if you don’t see exactly what your’e looking for, just give us a call.
