N5 - Selectors

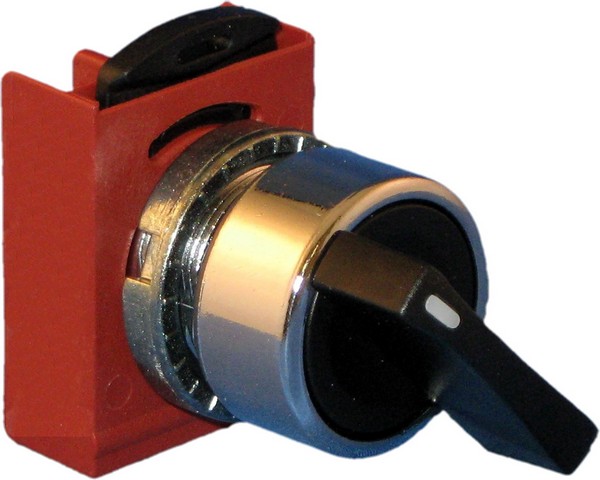

Springer Controls offers a full line of 22mm IEC pilot devices.  This section is for the standard selector switches (non-illuminated).

The bezel can be either chrome plated or black plastic.  The black plastic bezel is corrosion proof.  When properly fitted in a standard IEC size 22.5mm hole, a NEMA 4 / IP65 ingress rating can be maintained.

Contacts are UL certified and rated for 10A continuous AC current (up to 600VAC), and up to 2.5A DC current (up to 300VDC).

Suitable for operating temperatures from -25 to +70C.  (-13 to +158F)

2, 3, 4, or 5 position selectors.  Spring return offered on 2, and 3 position selectors only.
For more details download our brochure.
