N5 - Pushbuttons

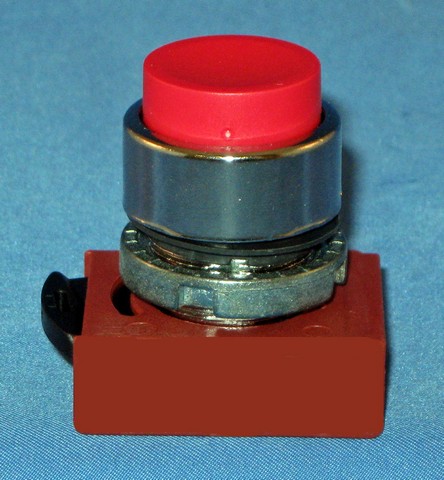

Springer Controls offers a full line of 22mm IEC pushbuttons.  This section is for the standard push buttons (non-illuminated).
They can be purchased without contacts (operator only) but to fully function you will need contacts.  If you don’t see the contact configuration you like, then you can purchase the operator only and the contacts you want separately.
The bezel can be either chrome plated or black plastic.  The black plastic bezel is corrosion proof.  When properly fitted in a standard IEC size 22.5mm hole, a NEMA 4 / IP65 ingress rating can be maintained.

Contacts are UL certified and rated for 10A continuous AC current (up to 600VAC), and up to 2.5A DC current (up to 300VDC).

Suitable for operating temperatures from -25 to +70C.  (-13 to +158F)

Standard pushbuttons are mechanically rated for up to 3million operations.

For more details download our brochure.
