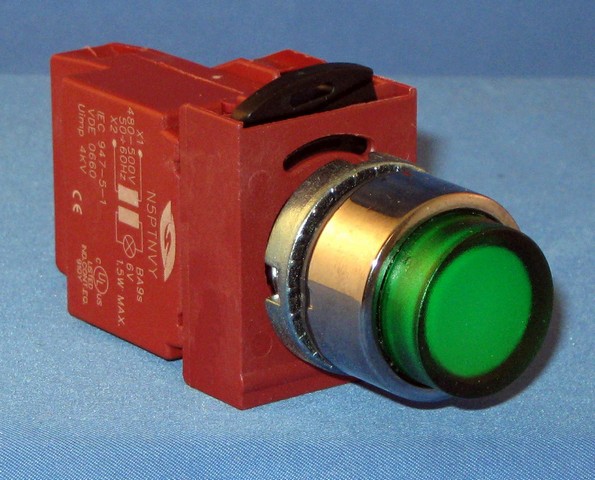

N5 - Illuminated Buttons

Springer Controls offers a full line of 22mm IEC pilot devices.  This section is for the illuminated push buttons.  All illuminated pilot devices use LEDs.
They can be purchased without contacts (operator only) but to fully function you will need contacts.  If you don’t see the contact configuration you like, then you can purchase the operator only and the contacts you want separately.  Each operator can accommodate up to 3 contacts.
The bezel can be either chrome plated or black plastic.  The black plastic bezel is corrosion proof.  When properly fitted in a standard IEC size 22.5mm hole, a NEMA 4 / IP65 ingress rating can be maintained.

Contacts are UL certified and rated for 10A continuous AC current (up to 600VAC), and up to 2.5A DC current (up to 300VDC).

Suitable for operating temperatures from -25 to +70C.  (-13 to +158F)

For more details download our brochure.
