DP Contactors

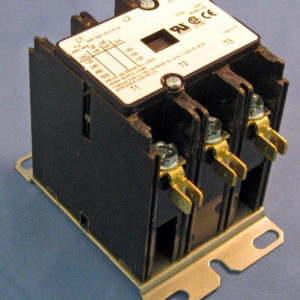

Springer Controls maintains a large inventory of 25, 30 and 40 amp contactors and supplies DP contactors all the way up to 90Amps. Springer Controls DP contactors are available in 1, 2 and 3 poles along with a full range of coil voltages. Key Features:DP Contactors- UL & CE certified
- Rated for temperatures from -40° to +65°C (-40° to 149°F)
- Maximum operating altitude: 2,000m above sea level (6,560ft)
- Coil Voltage: 80%-105% of rated voltage
- Relative Humidity: 45-85%
- Expected Operating Life: 200,000 operations on full load (AC Coil-2,000,000 mechanical operations)
- Min. Contact Current: 3A @ 120VAC
- Normal VA: Inrush 65VA; Sealed 7.5VA
- Duty Cycle: Continuous
- Initial Insulation Resistance: 100 mega-ohms minimum
-
IEC Contactors & Relays

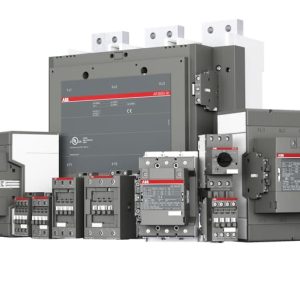

IEC Contactors & RelaysSpringer Controls carries a complete line of IEC contactors from ABB® and relays from 9 Amps up through 700 Amps. All products are available as open devices or as an enclosed AC starter package. Springer Controls also carries a full line of accessories. DC coils are available for all AC contactors.
Contactors, overload relays, control relays, spare coils auxiliary contacts are all in stock.
Not all products are shown on website. If you don't see what you're looking for, call us. -
Solid State Contactors

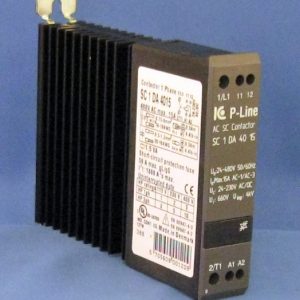

Solid State ContactorsSpringer Controls maintains a full line solid state contactors manufactured by IC Electronics A/S. We offer:
- Single phase electronic contactors
- Dual contactors
- Lamp and transformer controls
- 3 phase contactors
- Reversing contactors
- Starting torque limiters
- Internal bypass & Coil controlled external bypass available
Key Features:
- UL, CSA, and IEC certified
- Complete solid state SMT
- DIN rail mounted
- Compact, modular design (smallest soft starter available 22.5mm (<1″)
- Operational Voltage; 24V – 600V AC/DC
- Control Voltage; 24V – 600V AC/DC
- IP20 protection
-
AF Enclosed Motor Starters

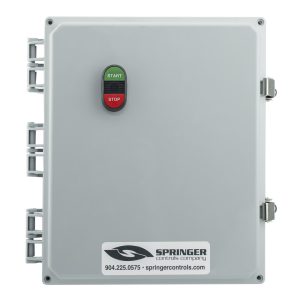

Springer Controls offers a full line of enclosed motor starters for both AC and DC power. The AF series motor starters utilize the AF contactors and TF overload relays from ABB®. These compact starters are perfect for any simple application needing motor control and protection from overload current. For more complex control panels, allow us to design and build a panel for you in our UL508A approved panel shop. Key Features: All contactors, overload relays, and custom panels are UL approved IP65, NEMA 4X rated polycarbonate enclosures stocked. Usually ships same/next day. Start by choosing the maximum amperage required and then choose your options on the next page. .AF Enclosed Motor Starters -
Manual Motor Starters

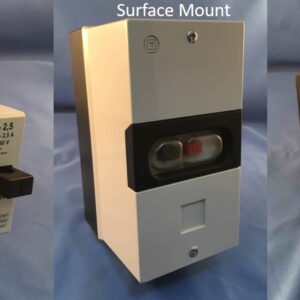

Manual Motor StartersSpringer Controls Company manual motor starters are 3-pole horsepower rated switches that incorporates a manual disconnect switch, overload relay and instantaneous magnetic trip mechanism in one compact device. The switches offer motor protection circuit breaker up to 32 amps. Available as open devices or as an enclosed motor starter. All poles open for both thermal and magnetic trips. UL listed, CSA approved. To use the product selector filters:
Type: Open (for mounting inside your own enclosure), Enclosed Flush mount (for mounting in the door of your own enclosure), Enclosed Surface mount (pre-mounted in IP55 rated enclosure)
Amp Range: Choose based on the full load amperage (FLA) of the motor your want to start at whatever voltage you will supply.
-
Soft Starters

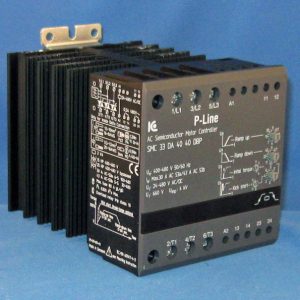

Springer Controls offers a full range of soft starters, starting torque limiters, as well as electronic contactors. Soft starters control the voltage supply during the start up of a motor to match the load requirements on startup. This makes for a smooth controlled startup while limiting the current draw. Soft starts are available with or without internal bypass. Currently we have not added the soft starters to our ecommerce site, so please contact us for more information or a quote.Soft Starters DP Contactors
Springer Controls maintains a large inventory of 25, 30 and 40 amp contactors and supplies DP contactors all the way up to 90Amps. Springer Controls DP contactors are available in 1, 2 and 3 poles along with a full range of coil voltages. Key...
IEC Contactors & Relays
Springer Controls carries a complete line of IEC contactors from ABB® and relays from 9 Amps up through 700 Amps. All products are available as open devices or as an enclosed AC starter package. Springer Controls also carries a full line of...Solid State Contactors
Springer Controls maintains a full line solid state contactors manufactured by IC Electronics A/S. We offer:Single phase electronic contactorsDual contactorsLamp and transformer controls3 phase contactorsReversing contactorsStarting...AF Enclosed Motor Starters
Springer Controls offers a full line of enclosed motor starters for both AC and DC power. The AF series motor starters utilize the AF contactors and TF overload relays from ABB®. These compact starters are perfect for any simple application...Manual Motor Starters
Springer Controls Company manual motor starters are 3-pole horsepower rated switches that incorporates a manual disconnect switch, overload relay and instantaneous magnetic trip mechanism in one compact device. The switches offer motor...Soft Starters
Springer Controls offers a full range of soft starters, starting torque limiters, as well as electronic contactors. Soft starters control the voltage supply during the start up of a motor to match the load requirements on startup. This makes...
Springer Controls offers a full line of AC contactors (DC coils available) starters both open and enclosed, as well as soft starts and accessories.
